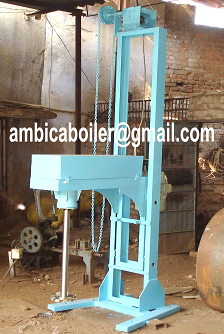

CONSTRUCTION: The machine consists of the following
Steel fabricated enclosure inside which is installed the drive assembly consisting of a set of balanced pulleys, V belts, electric motor and motor tensioning device. The drive head is of hinged type construction which can opened and locked for maintenance.
SS 304 shaft duly machined and balanced is provided with a hard chrome plated cowless disperser blade of special design for quick and efficient dispersion. The disperser’s blade is made from special steel to withstand high wear and tear. The shaft is installed in a bearing housing provided with taper roller bearings. Lubrication points are provided on the housing. RPM variable from 0-1500
AC Frequency inverter installed in a panel controls the RPM of the Disperser shaft from 0-1500. The inverter is provided with settings for monitoring torque, amperage, voltage, power factor ect and is PC compatible.
3 phase, 415 V, 50 HZ TEFC motor, drives a set of pulleys and V belts. The Motor is provided with a belt tensioning device.
All SS parts are duly polished to a bright or matt finish. All MS parts are painted with 2 coats of metal primer and polyurethane paint.
Machine is designed for Solvent based paints having viscosity of poise and sp gr. of 1.2. Water based paints having viscosity of 15 poise and sp gr. of 1.3.
