Usage/Application | Industrial |
Material | Stainless Steel |
Design Type | Standard, Customized |
Steel Grade | ss 304 |
Condition | new |
Country of Origin | Made in India |
Our range of products include high shear emulsifier machine, high shear batch mixer, high speed homogenizer, hanging type homogenizer and stand type homogenizer.

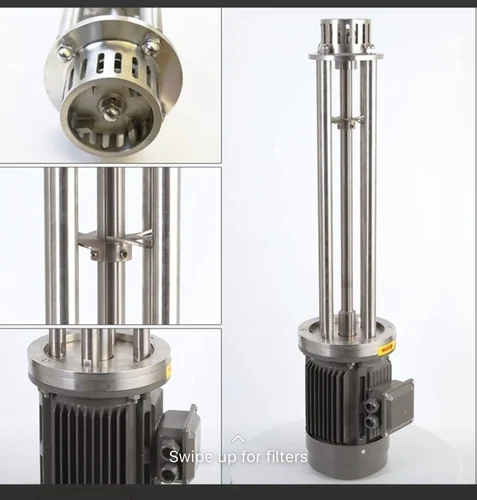

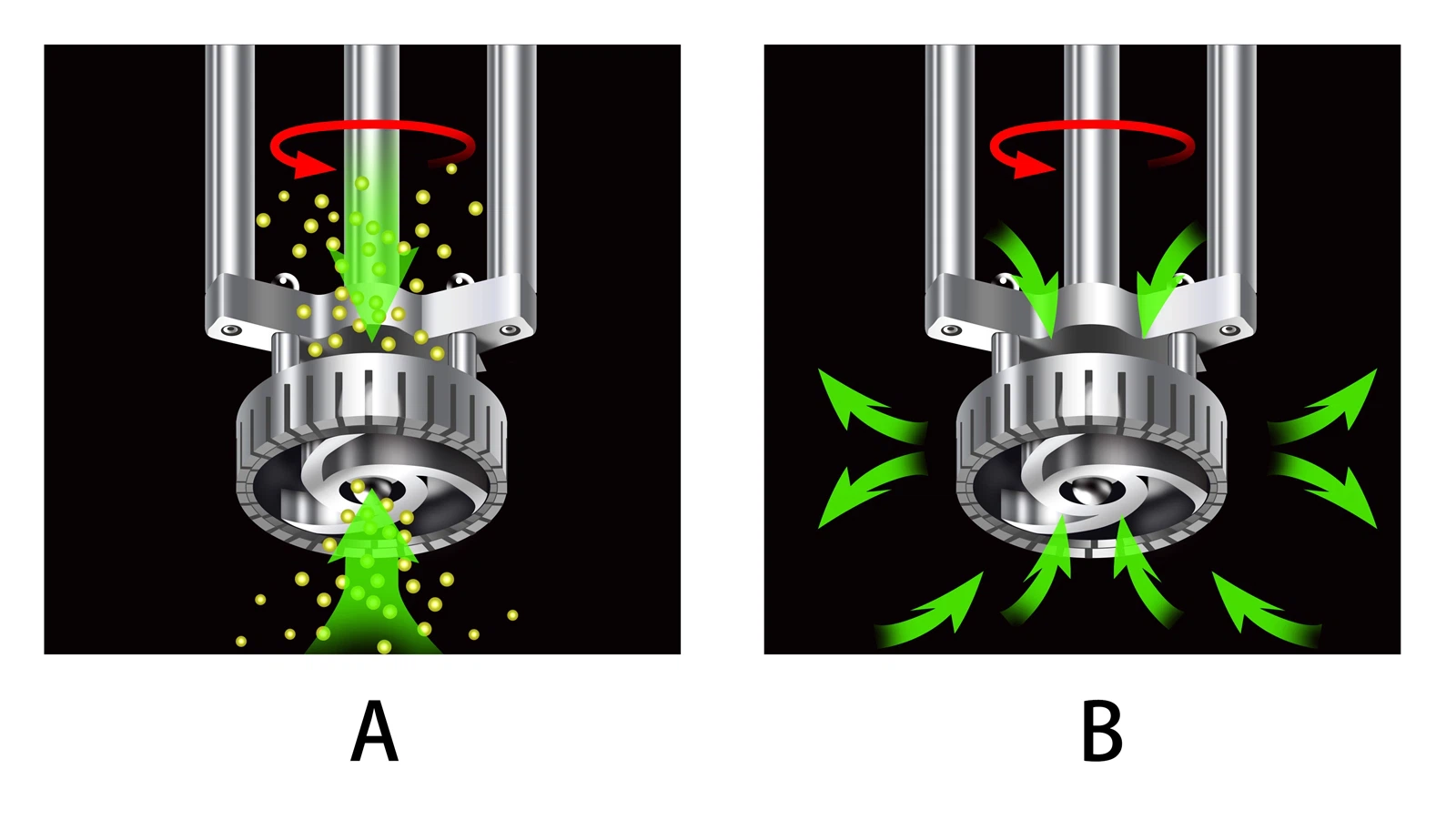

High shear homogenizer is with rotor and stator, with fine forging, linear cut forming claw-type, two-way suction, high efficiency circulation, no dead corner, guarantee the mixing completely and stability. The key parts are with milling processing, the combination between stator and rotor reach American Level standard. CE approval. It includes batch production high shear homogenizer, Inline high shear homogenizer pump, single stage and three stages.
This is useful for making suspensions and emulsion etc. The homogenizing head consists of stator and rotor arrangement made out of S.S. 316 quality. The stator is steel supporting rods and the rotor is driven by suitable motor. Telescopic stand for above homogenizer is made out of S.S. channel. Worm and worm wheel to lift by handle. Stands claded by S.S. 304 sheet.
The noise is low, the efficiency is high, running smoothly without a blind spot, 100% through the working cavity.Large processing flow, suitable for industrial continuous production, to deal with the range of viscosity wider.
Biology, pharmacy, food, ink, textile auxiliary, cosmetic lubricating oil and fertilizer etc. solution, gel, suspension or emulsion Juice, soup bases, milk production, mayonnaise, tissue homogenate, shampoo, lotion, emulsion, surfactants, asphalt, oil field chemicals, lubricant, etc.
Model | Power /KW | suggested capacity/L | Rotation/rpm | Liftingheight (mm) | Material |
ABFHE-1.1 | 1.1 | <100 | 3000 | 600 | SUS304/316L |
ABFHE-2.2 | 2.2 | <150 | 3000 | 700 | SUS304/316L |
ABFHE-4 | 4 | <200 | 3000 | 800 | SUS304/316L |
ABFHE-7.5 | 7.5 | <500 | 3000 | 900 | SUS304/316L |
ABFHE-11 | 11 | <800 | 3000 | 900 | SUS304/316L |
ABFHE-15 | 15 | <1200 | 1500/3000 | 900 | SUS304/316L |
ABFHE-18.5 | 18.5 | <1800 | 1500/3000 | 1100 | SUS304/316L |
ABFHE-22 | 22 | <2000 | 1500/3000 | 1100 | SUS304/316L |
ABFHE-30 | 30 | <2500 | 1500 | 1100 | SUS304/316L |
ABFHE-37 | 37 | <3000 | 1500 | 1600 | SUS304/316L |
ABFHE-45 | 45 | <4000 | 1500 | 1600 | SUS304/316L |
ABFHE-55 | 55 | <5000 | 1500 | 1600 | SUS304/316L |
