We are Abster Equipment specialised in producing chemical macinery such as the kneader machine, grinding machine, experiencial machine, hot melt glue machines and other chemical machines and we have dealed with many years in the world market and enjoy a good reputations in the Eurpopean countries and north America markets and our producing technologys have invited many foreign advanced technologys especially in UK.
And this is the a kind of the chemical machine kneader machine details:

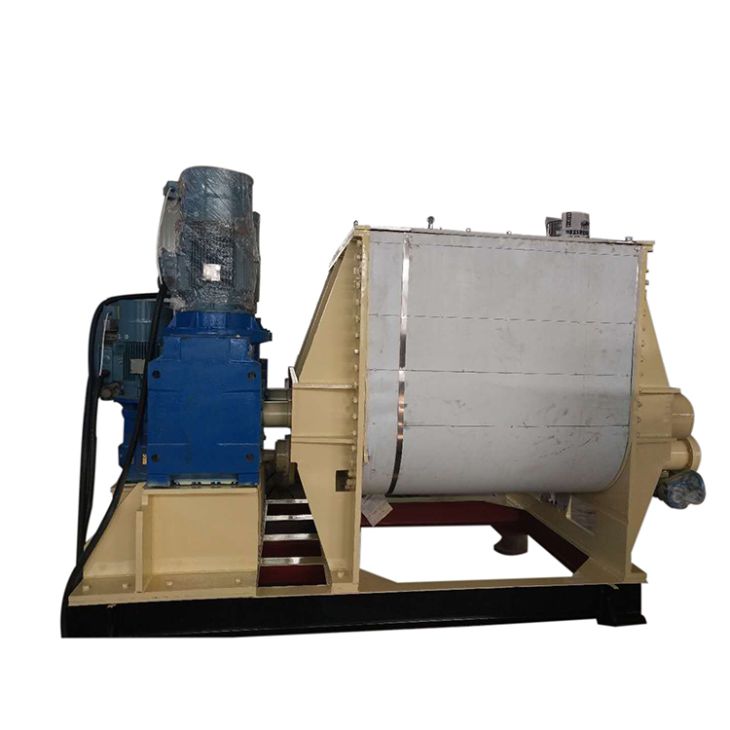

This Sigma kneader can knead all kinds of CMC with different viscous and it always used in checmials, plastics, rubbers, ink, carbon element, medicines, food and other areas, and the blade is made by the stainless steel, and it can ensure the purity and the quality of the products. This machine adopts "Z"type dubble mixing, and can help the material react quikly and uniform.
Models available: 150kg, 350kg, 500kg and 1000kg capacities. All Z-Blade Mixers are suitable for gum and heavy paste-type products. Jacketed machine with power tilting. For hot water or low pressure steam. Internal construction from stainless steel.
| Details |
ZB 5 |
ZB 150 |
ZB 500 |
| Litre Capacity |
5 kl |
150 l |
500 kl |
| Blades Fast Speed RPM |
60 |
45 |
42 |
| Blades Slow Speed RPM |
40 |
25 |
26 |
| Max MPa Steam Pressure |
0.15 |
0.3 |
0.3 |
| Water Heating KW |
3.6 |
7.2 |
|
| Blade motor KW |
1.1 |
18.5 |
22 |
| Tilt Motor KW |
1.1 |
1.5 |
|
| Internal Mixer Sizes |
180 mm L x 200 mm W x 140~170 mm D |
660mm L x 530mm W x 390~490mm D |
840 mm L x 960 mm D x 650~850 mm D |
| Sizes |
1200 mm x 420 mm x 380 mm high |
2350 mm x 880 mm x 1200 mm high |
2600 mm x 2200 mm x 2150 mm high |
